Bottle Inverter / Cap Sterilizer

The bottle inverter and cap sterilizer is mainly used after the tea and juice has been hot filled into bottles and capped to sterilize the neck and cap area that is hard to be reached by high temperature drinks.

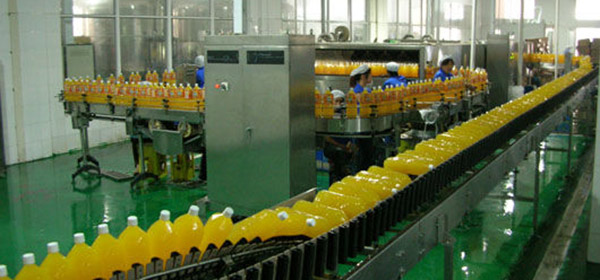

Capped hot filled bottles will be automatically laid over 90 degrees, allowing for sterilization of cap area. Then, the bottles will be erected and transported into sterilization and cooling tunnel.

The bottle inverter machine for cap sterilization employs advanced drive chain that ensures high stability and reliability, no damage to the bottle, and continuously adjustable speed.

Technical Parameters of the Bottle Inverter
Capacity Application range Sterilizing time Chain belt speed Motor power Weight
100-250 bottles /min Plastic bottles, Glass bottles 12-40s 1-10 1.5kw 1800kg
