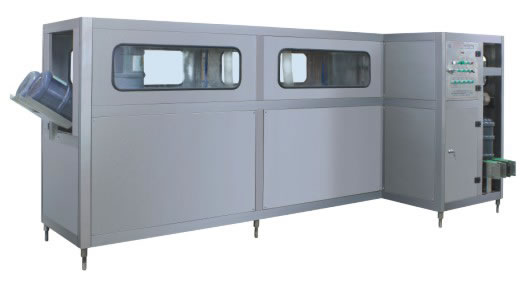

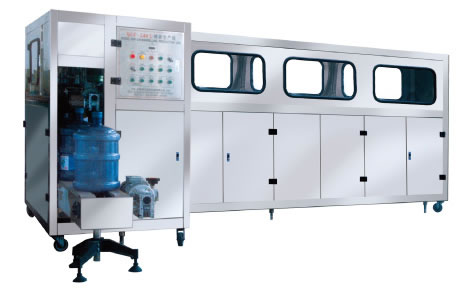

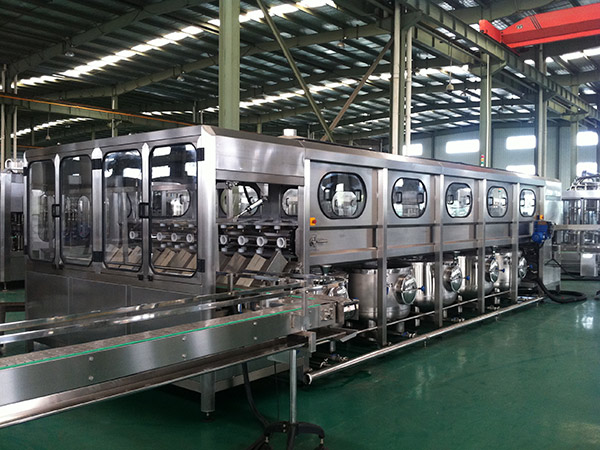

The 3/5 gallon bottling line is specially designed to provide an integral bottling solution for 3 gallon and 5 gallon barrel water. The entire bottling system integrates the functions of bottle washing, filling and capping. It is ideal for bottling of mineral water, distilled water and purified water.
Features
1. The complete bottling line is constructed from high quality stainless steel that is resistant to corrosion and easy to clean.
2. Main electrical components are imported from Siemens and Omron, and the air circuit system is produced by AirTAC.
3. The water filling machine features compact design, requiring small floor space.
4. It includes great working efficiency and high automation with exceptional stability and reliability.
Model Selection
QGF-900 Bottling Line
| Filling heads |
7pcs |
| Filling capacity |
3gallon, 5gallon |
| Barrel size |
φ3 0 x 420mm , φ76 x 490mm |
| Production capacity |
900 barrel/h |
| Machine power |
2.8kw |
| Power supply |
380V/50HZ |
| Air supply (L x W x H ) |
3950 x 1600 x 1860mm |
QGF-240 Bottling Line
| Filling heads |
2pcs |
| Filling capacity |
3gallon, 5gallon |
| Barrel size |
φ230 x 420mm , φ276 x 496mm |
| Production capacity |
60-240b/h |
| Machine power |
2.8kw |
| Power supply |
With a gross power of 3.68KW, it is only 2KW during normal hours as the power units are started intermittently. |
| Air supply |
The pressure is 0.45-0.6Mpa and the gas consumption is 0.17-0.22m3/h. |
QGF-120 Bottling Line
| Filling heads |
2pcs |
| Filling capacity |
3gallon, 5gallon |
| Barrel size |
φ230 x 420mm , φ276 x 496mm |
| Production capacity |
60-120b/h |
| Machine power |
2.8kw |
| Power supply |
With a gross power of 3.68KW, it is only 2KW during normal hours as the power units are started intermittently. |
| Air supply |
The pressure is 0.45-0.6Mpa and the gas consumption is 0.17-0.22m3/h. |
QGF-60 Bottling Line
| Filling heads |
1pcs |
| Filling capacity |
3gallon, 5gallon |
| Barrel size |
φ30 x 420mm , φ76 x 490mm |
| Production capacity |
60-120b/h |
| Machine power |
2.8kw |
| Power supply |
With a gross power of 3.68KW, it is only 2KW during normal hours as the power units are started intermittently. |
| Air supply |
The pressure is 0.45-0.6Mpa and the gas consumption is 0.17-0.22m3/h. |
