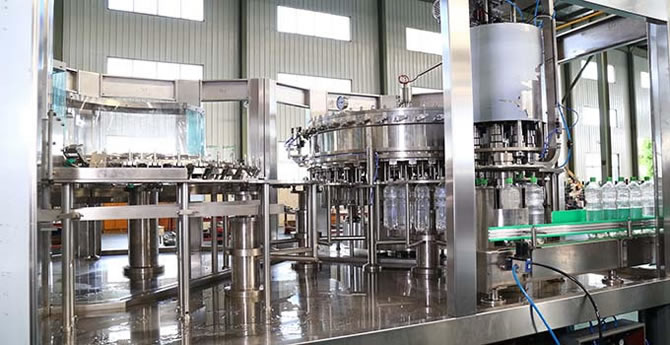

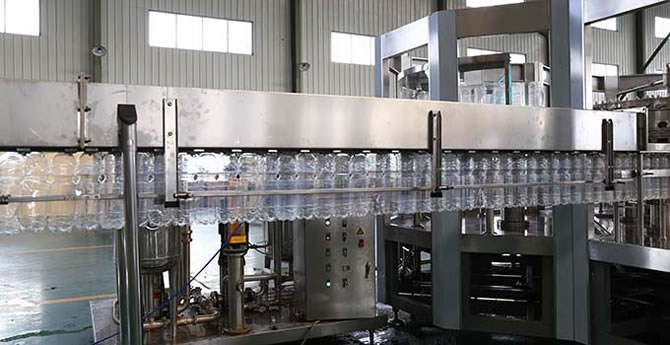

The rinsing filling capping machine for carbonated drinks is a multifunctional machine used in the production of carbonated beverages. The equipment integrates washing, filling and sealing all in one fully automated piece of machinery. These machines are commonly used for plastic bottle filling for mineral water, purified water and carbonated drinks. The filling function is isobaric pressure driven for stability. The productivity of this equipment is considerably better compared to similar machinery.
The filler capper is PLC controlled and adopts an air conveying device. The photoelectric inspection during running, makes for better automation and convenience. It is the ideal choice for almost any beverage manufacturer.
JR80-80-18D 34000B/H Washing Filling Capping Machine (3-in-1)
| Washing Heads | 80 |
| Filling Heads | 80 |
| Sealing Heads | 18 |
| Production Capacity | 34000B/H ( 500ml) |
| Machine Power | 15kw |
JR72-72-16D 30000B/H Washing Filling Capping Machine (3-in-1)
| Washing Heads | 72 |
| Filling Heads | 72 |
| Sealing Heads | 16 |
| Production Capacity | 30,000B/H ( 500ml ) |
| Machine Power | 11kw |
JR60-60-15D 22000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 60 |
| Filling Workstation | 60 |
| Capping Workstation | 15 |
| Production Capacity | 22000B/H ( 500ml ) |
| Machine Power | 11kw |
| Machine Weight | 18000Kg |
| External Dimensions (L*W*H) | 6300(mm)* 4400(mm) *3000(mm) |
JR50-50-12D 18000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 50 |
| Filling Workstation | 50 |
| Capping Workstation | 12 |
| Production Capacity | 18000B/H ( 500ml ) |
| Machine Power | 11kw |
| Machine Weight | 14500Kg |
| External Dimensions (L*W*H) | 5200(mm)* 3700(mm) *3000(mm) |
JR40-40-10D 15000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 40 |
| Filling Workstation | 40 |
| Capping Workstation | 10 |
| Production Capacity | 15000B/H ( 500ml ) |
| Machine Power | 7.5kw |
| Machine Weight | 10000Kg |
| External Dimensions (L*W*H) | 3,700 (mm)* 2,750(mm) *3,000 (mm) |
JR32-32-10D 10000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 32 |
| Filling Workstation | 32 |
| Capping Workstation | 10 |
| Production Capacity | 10000B/H(500ml) |
| Machine Power | 5.5kw |
| Machine Weight | 8500Kg |
| External Dimensions (L*W*H) | 3,700 (mm)* 2,750(mm) *3,000 (mm) |
JR24-24-8D 8000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 24 |
| Filling Workstation | 24 |
| Capping Workstation | 8 |
| Production Capacity | 8000B/H (500ml ) |
| Machine Power | 5.5kw |
| Machine Weight | 7000Kg |
| External Dimensions (L*W*H) | 3100(mm)* 2450(mm) *3050(mm) |
JR18-18-6D 5000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 18 |
| Filling Workstation | 18 |
| Capping Workstation | 6 |
| Production Capacity | 5000B/H ( 500ml ) |
| Machine Power | 4kw |
| Machine Weight | 5000Kg |
| External Dimensions (L*W*H) | 2800(mm)* 2050(mm) *2200(mm) |
