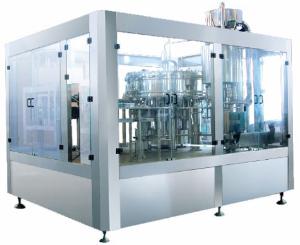

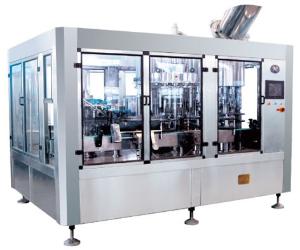

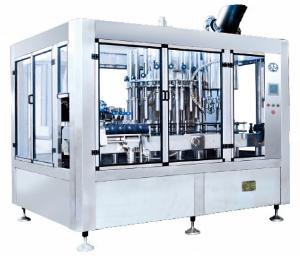

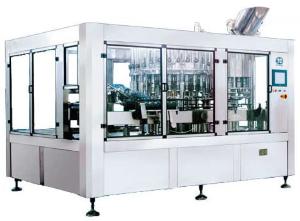

The rinsing filling capping machine for wine and sauce integrates washing, filling and sealing functions for fully automated production processes in wine and sauce making. The filler capper is suitable for glass bottles and aluminum filling of wine, grape juice and sauces.

JR40-40-10F 15000B/H Washing Filling Capping Machine (3-in-1)

Washing Workstation	40
Filling Workstation	40
Capping Workstation	10
Production Capacity	15,000B/H ( 500ml )
Machine Power	7.5kw
Machine Weight	9500Kg
External Dimensions (L*W*H)	4,300 (mm)* 3,300 (mm) *2,900 (mm)

Inquiry Form

JR32-32-10F 10000B/H JR32-32-10F10000B/H

Washing Workstation	32
Filling Workstation	32
Capping Workstation	10
Production Capacity	10,000B/H ( 500ml )
Machine Power	5.5kw
Machine Weight	8000Kg
External Dimensions (L*W*H)	3,700 (mm)* 2,750 (mm) *2,900 (mm)

Inquiry Form

JR24-24-8F 8000B/H Washing Filling Capping Machine (3-in-1)

Washing Workstation	24
Filling Workstation	24
Capping Workstation	8
Production Capacity	8,000B/H ( 500ml )
Machine Power	4kw
Machine Weight	7000Kg
External Dimensions (L*W*H)	3,100 (mm)* 2,450 (mm) *2,800 (mm)

Inquiry Form

JR18-18-6F 5000B/H Washing Filling Capping Machine (3-in-1)

Washing Workstation	18
Filling Workstation	18
Capping Workstation	6
Production Capacity	5,000B/H ( 500ml )
Machine Power	3kw
Machine Weight	5000Kg
External Dimensions (L*W*H)	2,800 (mm)* 2,050 (mm) *2,800 (mm)

Inquiry Form

JR18-18-6DB 5000B/H Washing Filling Capping Machine (3-in-1)

Washing Heads	18	24	32
Filling Heads	18	24	32
Sealing Heads	6	8	10
Product Capacity	5000B/H ( 500ml )	8000B/H ( 500ml )	10000B/H ( 500ml )
Machine Power	3kw	5.5kw	5.5kw

Inquiry Form

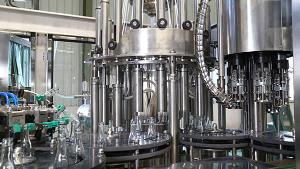

The machine can be adjusted for various bottle types and performs negative pressure filling for reliability. This is a highly effective filling method for cleanliness and speed. The machine is PLC controlled and is fully automated, allowing for incredible efficiency and high capacity output.
