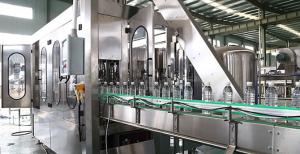

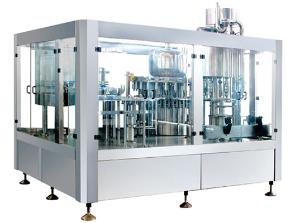

The rinsing filling capping machine for juice and tea is designed for beverage filling suitable for numerous juice and tea types. With integrated washing, filling and sealing functions, the machine is highly efficient. It features a temperature control device for heat filling drinks. The equipment is quickly and easily adjusted for various bottle types. It adopts a new micro-negative pressure filling function for stable and reliable filling. This equipment is ideal for beverage manufacturers seeking highly automated filler cappers.
Model SelectionJR80-80-18R 34000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 80 |
| Filling Workstation | 80 |
| Capping Workstation | 18 |
| Production Capacity | 34,000B/H (500ml) |
| Machine Power | 15kw |
JR72-72-16R 30000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 72 |
| Filling Workstation | 72 |
| Capping Workstation | 16 |
| Production Capacity | 30000B/H(500ml) |
| Machine Power | 11kw |
JR60-60-15R 22000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 60 |
| Filling Workstation | 60 |
| Capping Workstation | 15 |
| Production Capacity | 22,000B/H ( 500ml ) |
| Machine Power | 11kw |
| Machine Weight | 16500Kg |
| External Dimensions (L*W*H) | 6,300 (mm)* 4,400 (mm) *2,900 (mm) |
JR50-50-12R 18000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 50 |
| Filling Workstation | 50 |
| Capping Workstation | 12 |
| Production Capacity | 18,000B/H (500ml) |
| Machine Power | 11kw |
| Machine Weight | 13000Kg |
| External Dimensions (L*W*H) | 5,200 (mm)* 3,700 (mm) *2,900 (mm) |
JR40-40-10R 15000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 40 |
| Filling Workstation | 40 |
| Capping Workstation | 10 |
| Production Capacity | 15,000B/H ( 500ml ) |
| Machine Power | 7.5kw |
| Machine Weight | 9500Kg |
| External Dimensions (L*W*H) | 4,300 (mm)* 3,300 (mm) *2,900 (mm) |
JR32-32-10R 10000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 32 |
| Filling Workstation | 32 |
| Capping Workstation | 10 |
| Production Capacity | 10,000B/H ( 500ml ) |
| Machine Power | 5.5kw |
| Machine Weight | 8000Kg |
| External Dimensions (L*W*H) | 3,700 (mm)* 2,750 (mm) *2,900 (mm) |
JR24-24-8R 6500B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 24 |
| Filling Workstation | 24 |
| Capping Workstation | 8 |
| Production Capacity | 6,500B/H ( 500ml ) |
| Machine Power | 4kw |
| Machine Weight | 6500Kg |
| External Dimensions (L*W*H) | 3,100 (mm)* 2,450 (mm) *2,800 (mm) |
JR18-18-6R 5000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 18 |
| Filling Workstation | 18 |
| Capping Workstation | 6 |
| Production Capacity | 5,000B/H ( 500ml ) |
| Machine Power | 3kw |
| Machine Weight | 5000Kg |
| External Dimensions (L*W*H) | 2,800 (mm)* 2,050 (mm) *2,200 (mm) |
JR16-16-5R 3000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 16 |
| Filling Workstation | 16 |
| Capping Workstation | 5 |
| Production Capacity | 2000B/H (500ml) |
| Machine Power | 3kw |
| Machine Weight | 4500Kg |
| External Dimensions (L*W*H) | 2,500(mm)* 1,900(mm) *2,200(mm) |
JR14-12-4R 2000B/H Washing Filling Capping Machine (3-in-1)
| Washing Workstation | 14 |
| Filling Workstation | 12 |
| Capping Workstation | 4 |
| Production Capacity | 2000B/H(500ml) |
| Machine Power | 3kw |
| Machine Weight | 4000Kg |
| External Dimensions (L*W*H) | 2400(mm)* 1900(mm) *2800(mm) |
