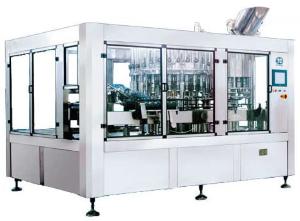

Rinsing Filling Capping Machine (for Wine and Sauce)

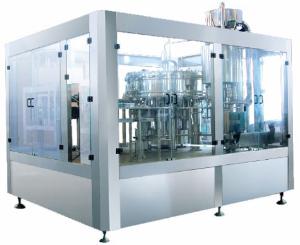

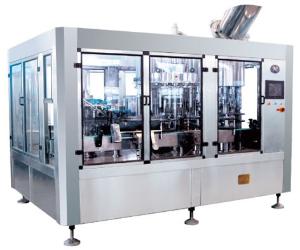

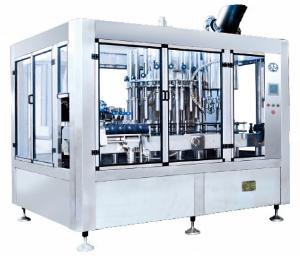

The rinsing filling capping machine for wine and sauce integrates washing, filling and sealing functions for fully automated production processes in wine and sauce making. The filler capper is suitable for glass bottles and aluminum filling of wine, grape juice and sauces.

Model Selection
JR40-40-10F 15000B/H Washing Filling Capping Machine (3-in-1)
Washing Workstation 40
Filling Workstation 40
Capping Workstation 10
Production Capacity 15,000B/H ( 500ml )
Machine Power 7.5kw
Machine Weight 9500Kg
External Dimensions (L*W*H) 4,300 (mm)* 3,300 (mm) *2,900 (mm)
JR32-32-10F 10000B/H JR32-32-10F10000B/H
Washing Workstation 32
Filling Workstation 32
Capping Workstation 10
Production Capacity 10,000B/H ( 500ml )
Machine Power 5.5kw
Machine Weight 8000Kg
External Dimensions (L*W*H) 3,700 (mm)* 2,750 (mm) *2,900 (mm)
JR24-24-8F 8000B/H Washing Filling Capping Machine (3-in-1)
Washing Workstation 24
Filling Workstation 24
Capping Workstation 8
Production Capacity 8,000B/H ( 500ml )
Machine Power 4kw
Machine Weight 7000Kg
External Dimensions (L*W*H) 3,100 (mm)* 2,450 (mm) *2,800 (mm)
JR18-18-6F 5000B/H Washing Filling Capping Machine (3-in-1)
Washing Workstation 18
Filling Workstation 18
Capping Workstation 6
Production Capacity 5,000B/H ( 500ml )
Machine Power 3kw
Machine Weight 5000Kg
External Dimensions (L*W*H) 2,800 (mm)* 2,050 (mm) *2,800 (mm)
JR18-18-6DB 5000B/H Washing Filling Capping Machine (3-in-1)
Washing Heads 18 24 32
Filling Heads 18 24 32
Sealing Heads 6 8 10
Product Capacity 5000B/H ( 500ml ) 8000B/H ( 500ml ) 10000B/H ( 500ml )
Machine Power 3kw 5.5kw 5.5kw

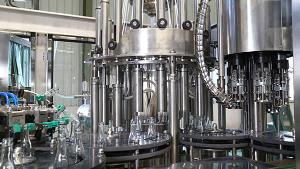

The machine can be adjusted for various bottle types and performs negative pressure filling for reliability. This is a highly effective filling method for cleanliness and speed. The machine is PLC controlled and is fully automated, allowing for incredible efficiency and high capacity output.
