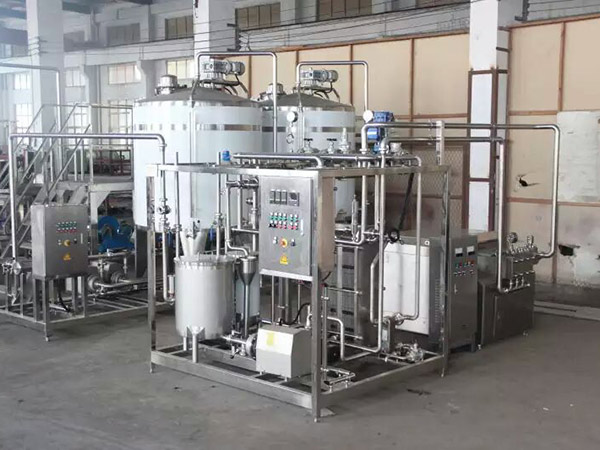

QHS Beverage Processor

The QHS beverage processor is a mixing machine that is often applied for carbonation and proportion mixing of various carbonated beverages.

Features:
1. The machine is a static mixer (carbonizer) that features a large gas liquid mass transfer area.
2. Quick adjustment without parts changing for various materials.
3. Helps prevent wasted carbon dioxide gas.
4. Easy adjustment of gas levels.
5. Excellent automation function.
6. Built in cleaning function that meets China’s national standards.

Main Technical Parameters
Production Capacity (bottle/h) 1,500, 3,000, 6,000, 8,000, 15,000, 20,000
Syrup and Water Regulating Range 1:3-1:10
Water Content (CO2: H2O Volume Ratio) > 2.5
Chilled Water Inlet Temperature ( ℃ ) 0-4
Pre-carbonization Tank, Syrup Tank Working Pressure (Mpa) 0.05-0.09
Storage Tank Working Pressure (Mpa) 0.2-0.5
Power (kw) 2.42 (1,500), 3.15 (3,000), 6.3 (6,000), 7.85 (8,000)
